STEEL
OR ALLOY - The material of choice is a moderate strength
steel, whereas if steel could be replaces by a high strength
aluminium alloy, significant fuel/energy savings could be made
across the fleet, just a reversing the ribs might make
containers more aerodynamically efficient. 20′ containers come in at 20 feet long, eight and a half feet wide, and eight feet tall. A 20 container gives you 1,360 cubic feet of storage space and weighs about 5,017 lbs empty.
STANDARD
Modern
containers ships are cargo ships designed to carry their cargo in
standardised steel
boxes, using a technique called “Containerization”. This
type of ocean transport contributes about 90% of non-bulk cargo
movement worldwide. This is how you get your televisions,
computers, fruits and spare parts. Cars are generally
transported by ferries,
though some collector vehicles are delivered in containers.
Fossil
fuelled container ships that belch clouds of fumes as they ply
the ocean may one day be a thing of the past.
Shipping will continue without those who fail to adapt to
changing circumstances such as global
warming and zero carbon
fleets by 2100, as part of the IMO's ocean cleanup objectives. In the meantime
here are the top ten biggest gas guzzlers and potential ocean
polluters in the world @
October 2019.
TEU
& FEU
TWENTY
FOOT (STANDARD) UNIT = TEU
The twenty-foot equivalent unit (often TEU or teu) is an inexact unit of cargo capacity often used to describe the capacity of container ships and container terminals. It is based on the volume of a 20-foot-long (6.1 m) intermodal container, a standard-sized metal box which can be easily transferred between different modes of transportation, such as ships, trains and trucks.
The container is defined by its length though there is a lack of standardisation in regard to height, ranging between 4 feet 3 inches (1.30 m) and 9 feet 6 inches (2.90 m), with the most common height being 8 feet 6 inches (2.59 m). Also, it is common to designate 45-foot (13.7 m) containers as 2 TEU, rather than 2.25 TEU.
FORTY
FOOT (LONGER) UNIT = 2 x TEU
The standard intermodal container is designated as twenty feet long (6.1 m) and 8 feet (2.44 m) wide. Additionally there is a standard container with the same width but a doubled length of forty feet called a 40-foot (12.2 m) container, which equals one forty-foot equivalent unit (FEU),in cargo transportation (considered to be two TEU).
In order to allow stacking of these types a forty-foot intermodal container has an exact length of 40 feet (12.192 m), while the standard twenty-foot intermodal container is slightly shorter having an exact length of 19 feet 10.5 inches (6.058 m). The twistlocks on a ship are put at a distance so that two standard twenty-foot containers have a gap of three inches which allows a single forty-foot container to be put on top.
The forty-foot containers have found wider acceptance, as they can be pulled by semi-trailer truck. The length of such a combination is within the limits of national road regulations in many countries, requiring no special permission. As some road regulations allow longer trucks, there are also variations of the standard forty-foot container — in Europe and most other places a container of 45 feet (13.72 m) may be pulled as a trailer. Containers with a length of 48 feet (14.63 m) or 53 feet (16.15 m) are restricted to road transport in the United States. Although longer than 40 feet, these variants are put in the same class of forty-foot equivalent units.
TYPE
OF SHIP |
CAPACITY
(TEU) |
|
|
SMALL
FEEDER |
Up
to 1,000 |
FEEDER |
1,001
- 2,000 |
FEEDERMAX |
2,001
- 3,000 |
PANAMAX |
3,001
- 5,100 |
POST
PANAMAX |
5,101
- 10,000 |
NEW
PANAMAX |
10,001
- 14,500 |
ULTRA
LARGE CONTAINER VESSEL (ULCV) |
14,501
- 23,500 |
MEGAMAX |
Over
23,501 |
INTERMODAL

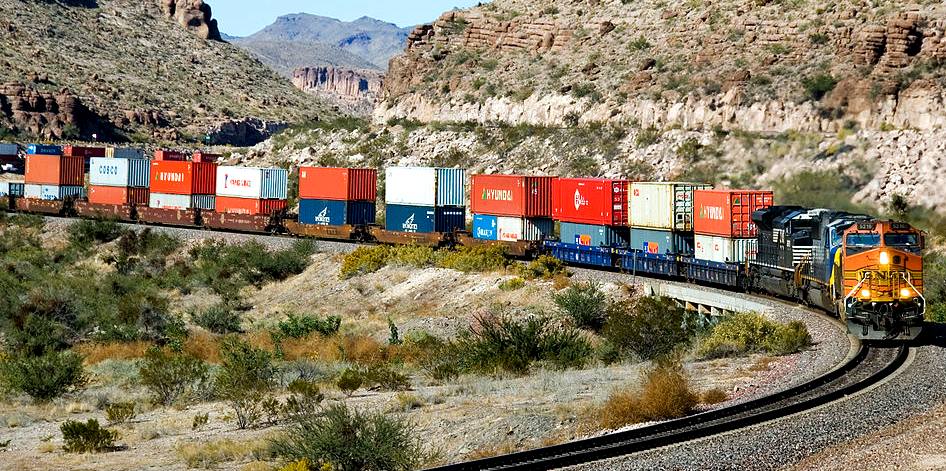

An intermodal container is a large standardized shipping container, designed and built for intermodal freight transport, meaning these containers can be used across different modes of transport – from ship to rail to truck – without unloading and reloading their cargo. Intermodal containers are primarily used to store and transport materials and products efficiently and securely in the global containerized intermodal freight transport system, but smaller numbers are in regional use as well. These containers are known under a number of names, such as simply container, cargo or freight container, ISO container, shipping, sea or ocean container, sea van or (Conex) box, sea can or c can.
Intermodal containers exist in many types and a number of standardized sizes, but ninety percent of the global container fleet are so-called "dry freight" or "general purpose" containers, durable closed steel boxes, mostly of either twenty or forty feet (6.1 or 12.2 m) standard length. The common heights are 8 feet 6 inches (2.6 m) and 9 feet 6 inches (2.9 m) – the latter are known as High Cube or Hi-Cube containers.
Just like cardboard boxes and pallets, these containers are a means to bundle cargo and goods into larger, unitized loads, that can be easily handled, moved, and stacked, and that will pack tightly in a ship or yard. Intermodal containers share a number of key construction features to withstand the stresses of intermodal shipping, to facilitate their handling and to allow stacking, as well as being identifiable through their individual, unique ISO 6346 reporting mark.
In 2012, there were about 20.5 million intermodal containers in the world of varying types to suit different cargoes. Containers have largely supplanted the traditional break bulk cargo – in 2010 containers accounted for 60% of the world's seaborne trade. The predominant alternative methods of transport carry bulk cargo – whether gaseous, liquid or solid – e.g. by bulk carrier or tank ship, tank car or truck. For air freight, the lighter weight IATA-defined unit load device is used.
CORNERS -

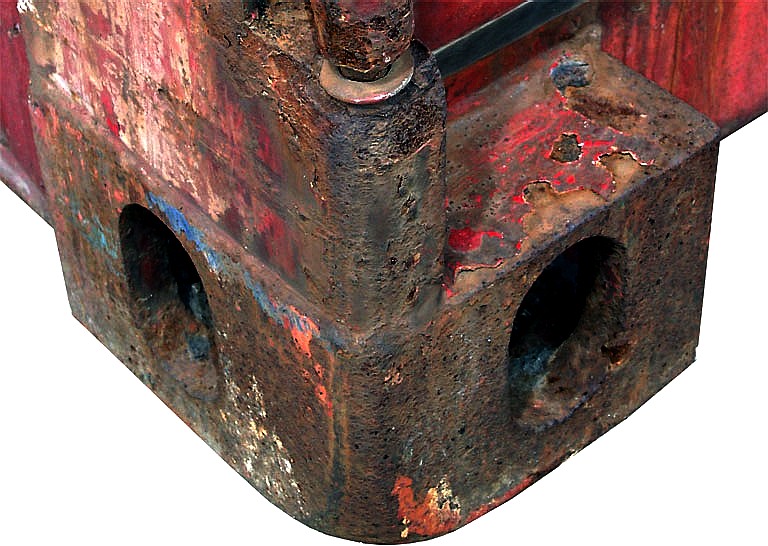

The standard castings on the eight corners of each container. The twistlock proper is done through a larger oval hole on the top or bottom.
DESCRIPTION
Ninety percent of the global container fleet consists of "dry freight" or "general purpose" containers – both of standard and special sizes. And although lengths of containers vary from 8 to 56 feet (2.4 to 17.1 m), according to two 2012 container census reports about 80% of the world's containers are either twenty or forty foot standard length boxes of the dry freight design. These typical containers are rectangular, closed box models, with doors fitted at one end, and made of corrugated weathering steel (commonly known as CorTen) with a plywood floor. Although corrugating the sheet metal used for the sides and roof contributes significantly to the container's rigidity and stacking strength, just like in corrugated iron or in cardboard boxes, the corrugated sides cause aerodynamic drag, and up to 10% fuel economy loss in road or rail transport, compared to smooth-sided vans.
Standard containers are 8-foot (2.44 m) wide by 8 ft 6 in (2.59 m) high,[nb 7] although the taller "High Cube" or "hi-cube" units measuring 9 feet 6 inches (2.90 m) have become very common in recent years. By the end of 2013, high-cube 40 ft containers represented almost 50% of the world's maritime container fleet, according to Drewry's Container Census report.
About 90% of the world's containers are either nominal 20-foot (6.1 m) or 40-foot (12.2 m) long, although the United States and Canada also use longer units of 45 ft (13.7 m), 48 ft (14.6 m) and 53 ft (16.15 m). ISO containers have castings with openings for twistlock fasteners at each of the eight corners, to allow gripping the box from above, below, or the side, and they can be stacked up to ten units high. Regional intermodal containers, such as European and U.S. domestic units however, are mainly transported by road and rail, and can frequently only be stacked up to three laden units high. Although the two ends are quite rigid, containers flex somewhat during transport.
Container capacity is often expressed in twenty-foot equivalent units (TEU, or sometimes teu). A twenty-foot equivalent unit is a measure of containerized cargo capacity equal to one standard 20-foot (6.1 m) long container. This is an approximate measure, wherein the height of the box is not considered. For example, the 9 ft 6 in (2.9 m) tall high-cube, as well as 4-foot-3-inch half-height (1.3 m) 20-foot (6.1 m) containers are equally counted as one TEU. Similarly, extra long 45 ft (13.72 m) containers are commonly designated as two TEU, no different than standard 40 feet (12.19 m) long units. Two TEU are equivalent to one forty-foot equivalent unit (FEU).
In 2014 the global container fleet grew to a volume of 36.6 million TEU, based on Drewry Shipping Consultants' Container Census. Moreover, in 2014 for the first time in history 40-foot High cube containers accounted for the majority of boxes in service, measured in TEU.
Manufacturing prices for regular, dry freight containers are typically in the range of $1750—$2000 U.S. per CEU (container equivalent unit), and about 90% of the world's containers are made in China. The average age of the global container fleet was a little over 5 years from end 1994 to end 2009, meaning containers remain in shipping use for well over 10 years.
STACKING

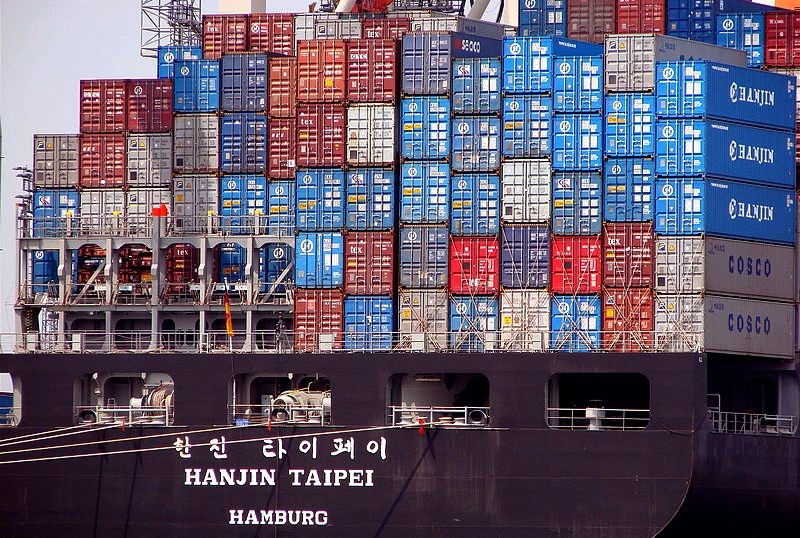

At stacking load-bearing locations, 40-foot containers are the standard unit length, and 45 ft, 48 ft, and 53 ft all stack at the 40 ft coupling width. Other units can be stacked on top of 20 ft units only if there are two in a row (40 ft coupling width) but 20 ft units can not be stacked on top of 40 ft units, or any other larger container.
The coupling holes require a double male twist lock to securely mate stacked containers together.
Stacking
close on a modern container ship is essential for safety and
space saving.
Each
container must carry a customs approval plate to be certified
as standard.
- FERRY - The
Cross Channel Challenger
(CCC) is a project currently on the drawing board that is looking for backing to develop a coastal cruiser
offering zero
emissions.
This is a budget design to allow us to start the ball
rolling, easily up-scaled for Pacific
Island duties.
H2020
- Collaborative research proposal to develop rotary
sails in conjunction with other innovative advances as
a means to provide sustainable tourism and eventually,
world shipping with major disruption to ports and
harbours.
The revolutionary Concept of Containerization was introduced way back in the late 18th century by James Brindley of England. He designed the box boat Starvationer with 10
wooden containers to transport
coal.
On April 26, 1956, the first commercially successful container ship Ideal X (a converted T2 tanker of
World War
II) was launched by Malcom McLean. This caused a revolution in the world of
shipping, leading to the modern era of container ships.
RANKED |
SHIP
NAME |
No. BUILT |
LOA |
TEU |
|
|
|
|
|
1. |
MSC
GULSUN |
5 |
399.9 |
23,756 |
2. |
OOCL
HONG KONG |
5 |
399.9 |
21,413 |
3. |
COSCO
Shipping Universe |
3 |
400.0 |
21,237 |
4. |
CMA
CGM Antoine de Saint Exupery |
2 |
400.0 |
20,954 |
5. |
Madrid
MAERSK |
10 |
399.0 |
20,568 |
6. |
Ever
Golden |
10 |
400.0 |
20,388 |
7. |
MOL
Truth |
1 |
399.0 |
20,182 |
8. |
MOL
Triumph |
3 |
400.0 |
20,170 |
9. |
COSCO
Shipping Taurus |
4 |
399.8 |
20,119 |
10. |
Barzan |
5 |
400.0 |
19,870 |
